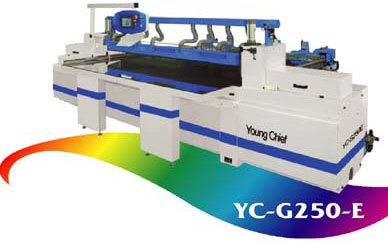

YC-G250E

Model YC-G250-E
Opti.cutting thickness <60mm
Max.cutting thickness 80mm
Main shaft mototor 13hp(9.75kw)
Scoring main shaft motor 1hp(0.75kw)
Moving saw motor 1hp(0.75kw)
Feeder motor(servo) 0.75kw(servo)
Floating table motor 6hp(4.5kw)
Cutting speed 10-30m/min
Feeder speed(servo) 5-25m/min(servo)
Opti.main sawblade size ø 305mm x 3.0mm x ø 25.4mm
Max.main sawblade size ø 350mm x 3.0mm x ø 25.4mm
Main sawblade r.p.m. 2000- 4500r.p.m
Scoring saw blade size ø 170mm x 2.9mm- 4mm x ø 25.4
Scoring saw blade r.p.m. 6500r.p.m
Standard air pressure 6-8kg/cm2
*All specification, dimensions and design characteristics are
  subject to change without prior notice.

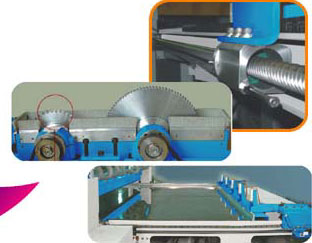

Freatures:

¡EEach memory have 10 pieces setting. Each working program with 4 function screen and 150 memory.

¡EThe function section showing allows practical understanding thus bringing out the working change.

¡EAlarm system, when the machine appear a breakdown.

¡ETouch screen function bottom controlled automatic fence device driven by servomotor active .

¡EPowerful straight and cross cutting exchange function .
