Freatures: •Synchronized by end-face finishing at one time processing of two sides shorten the processing time, and high     precision processing of mirror can be done in a process. •Installing high precision rotating circle work table that once adjusted can process four sides simultaneously. •The main milling spindle adopts frequency changer so that the rotation speed can be adjusted. •X, Z driving employs high quality rolling bead screw rods so that the feeding speed increases and the motor control     more stable as well as machine working life prolongs. •Chinese display uses LCD panel so that general operator can acquainted with the machine operations very quickly.

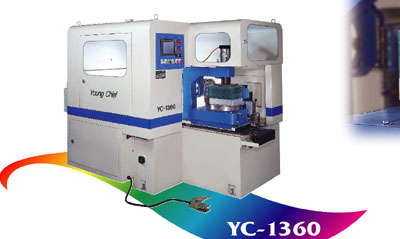

	Type YC-1360 Max.working thickness 120mm Mix.working size 130-600mm Spindle motor 3.75kw x 2 Spidnle speed 6000rpm Operation panel Lcd English display Min.setting0.01mm Rotation table dia. ø 300mm Rotation table Hydraulic 1.5kw Working precision ±0.05mm Cutting tools Crude working tool x 2. fine working tool x 1 Annual static eliminator by cutter part x 2 Dust chute outlet ø 100 x 2 Machine size 2700 x 2000 x 1950mm Weight 2800kgs *All specification, dimensions and design characteristics are subject to change without prior notice.
