楊崎機械有限公司 Young Chief

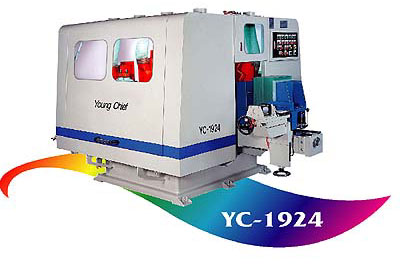

YC-1924



Freatures:

•This machine was developed for making acrylic panel background light model. It can make quick forming with high
    precision and accuracy in a super effective way of finishing irregular and rough surfaces of the both sides only in
    one process.

•Machine made of high solid structure, and machine body,work table, and cover aremade of low vibration design.
    The work table and sliding rails were tempered andalso ground twice.

Type YC-1924 YC-3080
Working thickness 160mm 160mm
Working size 300-520mm 300-800mm
Rotation table motor 1hp 1hp
Working table pneumatic 2 2
Rotation table Linear rail drive type, chain drive type
Rotation table control Variable speed Variable speed

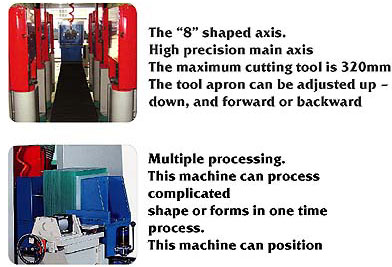

Number of spindle 8 8
Spindle motor 5hp x 8 5hp x 8
Spindle speed 5200rpm 5200rpm
Max. cutter dia.
Adjustable blade holder 320 x 550mm 320 x 550mm
Working precision Up-down, front-back ( scale ruler )
Machine size 4000 x 2160 x 1750mm 4000 x 2160 x 1750mm
Weight 4000kgs 4500kgs
*All specifications, dimensions and design characteristics are subject to change without prior notice.
Standard accessories :
* Protective cover
* Illumination lamp
* Tool box
* Tool clamp
*Tool apron dust collector 		Special accessories :
* Portable dust collector
* Magnetic ruler ( for adjust cutting  chips )
* Grinder
