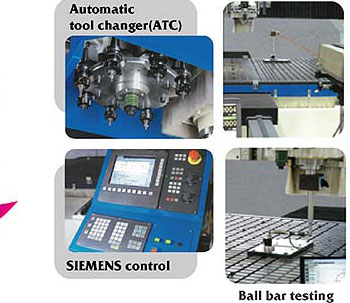

Freatures: •Two spindle heads permit two workpieces machining simultaneously. •Advanced built-in type spindle with extra high speed 20,000rpm. •Two drum type 8-tool ATCS,featuring bi-directional random tool selection. •Vacuum suction table employs German-imported vacuum generator. •Spindle heads elevation(z-axis) are counter-balanced by air cylinders. •3 axes traverses are driven by high performance servo motors,which directly couple with ball screws. •High precision ball screws on 3 axes. •Linear ways on 3 axes feature high accuracy and high rigidity. •Y axis is supported by 3 linear ways for added stability. •Various head attachments are available to meet flexible machining requirements. •Oil mist cooling system effectively reduces heat generation,while extending spindle service life. •Can be use for small-guantity and more type products or big-guantity products.

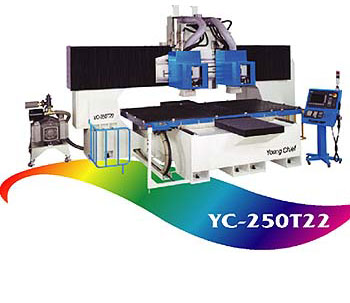

	Model YC-250T22 Dimensions of working area 3000 x 1500mm Traverse distance   X axis 3040mm Y axis 1540mm Z axis 300mm Spindle elevation 250mm Rapid speed(max.) X,Y-24m/min,Z-12m/min Max.workpiece height 350mm Spindle spacing 400-1200mm Spindle   Cooling method Oil Mist(油霧) Number of spindle 2 Spindle speed 1000-20000rpm Atc   Type Drum type(圓盤式) Tool holder type Iso-30(or bt30) Capacity of atc 8 Tools(8刀) Main power   Spindle 10hp(7.5kw) Cooler 3hp(2.25kw) Vacuum pump 7.5hp(5.6kw) Tool size   Collet dia.for router bits 12 or 16mm Hole diameter of shaoer cutter 1" Air pressure 6kg/cm2 Overall dimensions machine(LxWxH) 4700 x 3600 x 2900mm Packing size 20'high cube container N.W. 7200kgs G.W. 8000kgs *All specifications, dimensions and design characteristics are subject to change without prior   notice.
